Цифровой модуль ввода / вывода для KAM-PRO с 8 входами / выходами

SINK
Readback as 1
+10 ~ + 50VDC

SOURCE
Readback as 1
+10 ~ + 50VDC

DIGITAL OUTPUT
ON State
Readback as 1

SINK
Readback as 0
OPEN or <4 VDC

SOURCE
Readback as 0
OPEN or <4 VDC

DIGITAL OUTPUT
OFF State
Readback as 0

Description

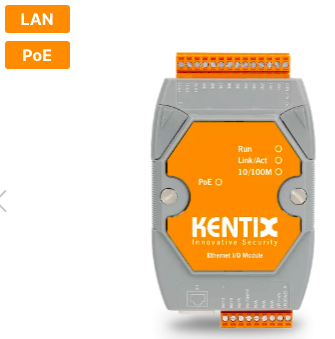

Expansion module for connection to the AlarmManager-PRO. This module extends the external inputs and outputs on the AlarmManager by additional 8 digital inputs and 8 digital outputs. Communication is done by Ethernet, so the module can be mounted anywhere. The configuration is done in the software interface of the AlarmManager-PRO. The module provides a built-in web server for simple IP configuration and testing of the inputs and outputs without any additional software.

Connectivity

External alarms from existing system components (air conditioners, UPS systems, generators, alarm systems)

Configuration

Built-in web server (HTTP), Default IP: 192.168.255.1 (Admin/Admin)

Protocols

KAM-IO communication through IP port: 502 (Default)

Security

ID, password and IP filter

Terminals

Pluggable screw-terminal for cables up to 1mm²

Inputs

Digital Inputs for voltage circuitry

ON: +10-50VDC, OFF: +4DC

Input impedance: 10kOHM, over voltage protection: 70VDC

Outputs

Open collector outputs 10-40VDC

Current load capacity 650mA (up to 1.1A overcurrent protection)

Overvoltage protection: 47VDC

Alarm output assignment

DO1-DO8: assignment via AlarmManager configuration

Isolation

Ethernet 1,5kVDC, I/O 3,7kVrms

Environment

Operation temperature 0°C to +45°C, rel. humidity 10-90%

Network

LAN 10/100 Base-TX

Power supply

External power supply 12-30VDC, 4.3W

Chassis

72 x 123 x 35 mm (DIN-rail mounting)

Content of delivery

KIO7052, 3m patch-cable, power-cable, manual

Approvals

CE
