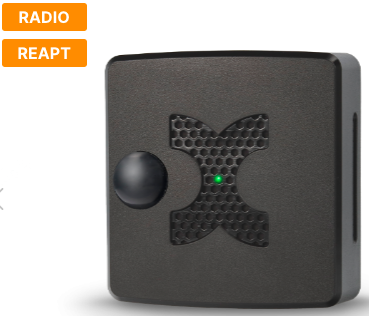

Универсальный мультидатчик MultiSensor-RF с ZigBee-Radio

Connectable devices

AlarmManager-BASIC (KAM-BASIC)

AlarmManager-PRO (KAM-PRO)

Sensor - temperature

Range -20 to 99°C / -3 to 210°F (accuracy ± 0,5°)

Sensor - relative humidity

Range 0 to 100% (accuracy ± 3%)

Dew point

Calculated in °C/°F

Sensor - motion

PIR sensor, trigger sensitivity configurable

Detection cone: approx. 100°

Range: approx. 8m

Sensor - vibration

3 axes vibration sensor (adjustable)

Sensor - carbon monoxide (CO)

0-10.000ppm measurement ± 10%

Internal resolution: 20-200ppm (0-100%)

Lifetime 10 years

Buzzer

85dB, 2.3kHz

Sensor - external alarm input

2 x alarm input (e.g. Armed-Active, Always-Active)

Connection potential-free via separately available KIO1/KIO3 power adapter

Ext. output

2x alarm output (e.g. Armed-Active, Always-Active),

connection via separately available KIO3 power adapter

LED

ALARM (red)

RUN (green)

Radio

ZigBee® 2,4GHz ISM band +3dBm output power, IEEE802.15.4

Encryption AES 128 Bit

Power supply

12-32VAC/DC power consumption. approx. 1.5W

Integrated UPS

3 minutes up time by internal high capacitor

Internal grid monitoring

Kentix System-jack

RJ45, for power supply and connection of external IO-modules (KIO1/KIO3 power adapter required)

Chassis

Material: PS 90 x 90 x 45 mm, Weight: approx. 100g

Color: White, Black

Environmental conditions

Temperature 0 - 50°C / 32 - 122°F

Humidity 5-95%, non-condensing

Types

KMS-RF-B (Chassis Black)

KMS-RF-W (Chassis White)

Content of delivery

Mounting bracket and material, KIO2, Power supply 24V

Accessories

PowerAdapter with power supply (KIO1, KIO3)

Leakage sensor (KLS03)

Approvals

CE
