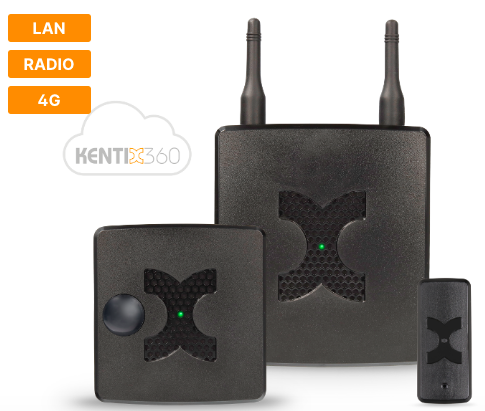

Датчик для мониторинга StarterSet-PRO SmartMonitoring (Black)

Number of MultiSensors/devices

• KAM-BASIC: max. 200 (ZigBee/radio)
• KAM-PRO: max. 500 (radio/Ethernet

• Integrated web server

• Web server: 443 TCP (also communication with sensors etc.)
• SNMP-GET: 161 UDP
• SNMP-TRAP: 162 UDP
• Kentix 360-Cloud: 5222 TCP

Internal Buzzer

• 85dB, 2.3kHz

Sensor - temperature

• range -20 to 99°C / -3 to 210°F (accuracy ± 1°C)

Sensor - relative humidity

• range 0 to 100% (accuracy ± 3%)

Dew point

• calculated in °C/°F

• internal vibration and position sensor

LED

• RUN/POWER (green), ALARM (red)

Radio

• ZigBee® 2,4GHz ISM Band +3dBm output power, IEEE802.15.4, encryption AES 128 Bit

Ethernet with PoE

• 10/100Mbit (Default IP: 192.168.100.222)
• Power supply via PoE class 2, power consumption approx. 6W

Integrated 4G/LTE Modem

• Quad Band (GSM/LTE/4G) 850/900/1800/1900MHz
• Integrated SIM card holder on housing rear side (Standard SIM)

SD card

• Integrated micro SD card holder as additional storage for image recording, up to 128 GB

Power supply

• PoE class 2, power consumption approx. 6W

Integrated UPS

• Bridging time via capacitor approx. 2 min. internal monitoring of the PoE power supply

Kentix system port

• 2 pc. RJ45, for external Plug´n Play sensors and IO module (KIO3)
• Overall: 4x digital input, 4x digital output

Chassis

• Material: PS 130 x 120 x 45 mm
• Weight approx. 300g
• Color: White, Black

Environmental conditions

• Temperature 0 - 50°C / 32 - 122°F
• Humidity 5-95%, non-condensing

Types (Art.-No.)

• KAM-BASIC-B (housing black)
• KAM-BASIC-W (housing white)
• KAM-PRO-B (housing black)
• KAM-PRO-W (housing white)

Content of delivery

• 2 pcs. of screw antennas (ZigBee, LTE)
• mounting bracket, mounting material, slim line cable 3m, SIM card (only DE/AT/CH)

Accessories

• Leakage sensor (KLS03)
• Power adapter KIO3 with 2 digital inputs and 2 relay outputs
• External antennas for ZigBee and LTE
• Mounting bracket 19" montage (KRA01/03)

Approvals

• CE
